The PA-28R Arrow III is a four seater, piston-engine aircraft equipped with a retractable tricycle landing gear and constant-speed propeller – an ideal aircraft for touring and instrument training.
The aircraft is flown all around the world and this add-on reflects that global popularity. In addition to our UK research aircraft, G-BGKU, the package features eleven liveries from the USA, Canada, UK, France, Switzerland, Australia and Germany.
The PA-28R Arrow III for X-Plane 11 features PBR materials with real-time environment reflections for superb quality and realism, 4096 x 4096 textures for the highest possible texture clarity and numerous animations including a multi-animation passenger door that, when open, responds to G-forces and air resistance.
FEATURES
Model
Accurately modelled PA-28R-201 Arrow III, built using real-world aircraft plans

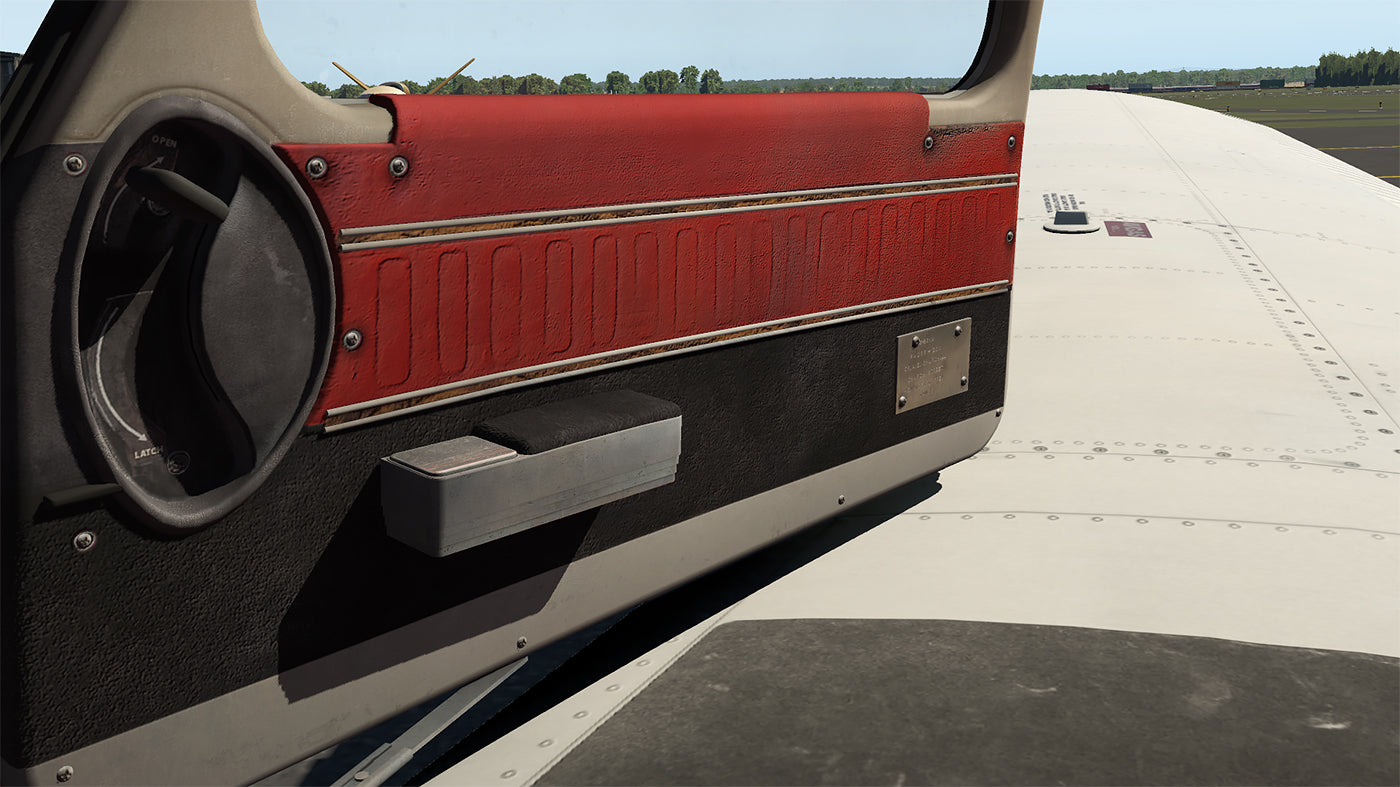

Numerous animations including multi-animation passenger door that, when open, responds to G-forces and air resistance, baggage door, cockpit window, sun visors and oil cover
Ground equipment including chocks and tie-downs
4096 x 4096 textures are used to produce the highest possible texture clarity
PBR (Physically Based Rendering) materials with real-time environment reflections for superb quality and realism
Detailed normal mapping for down-to-the-rivet precision of aircraft features.
Cockpit

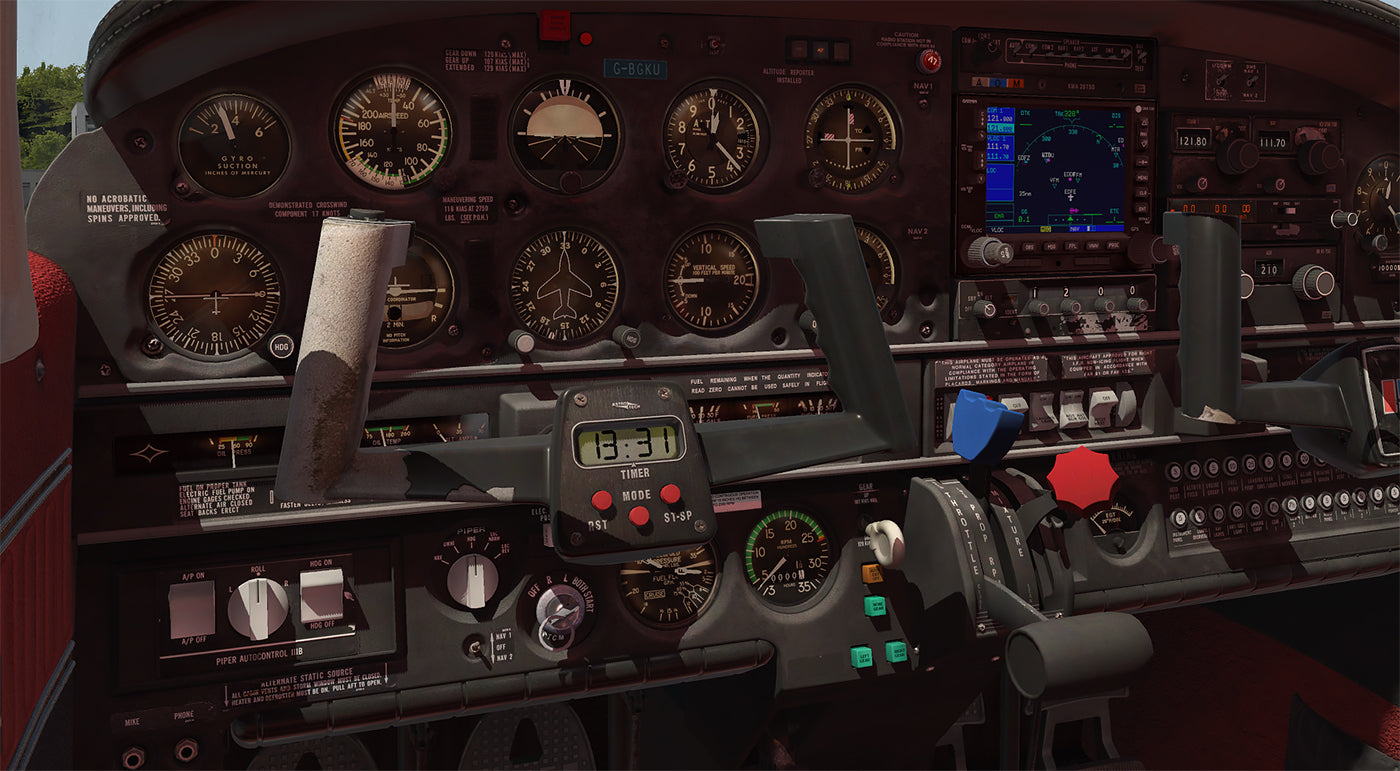

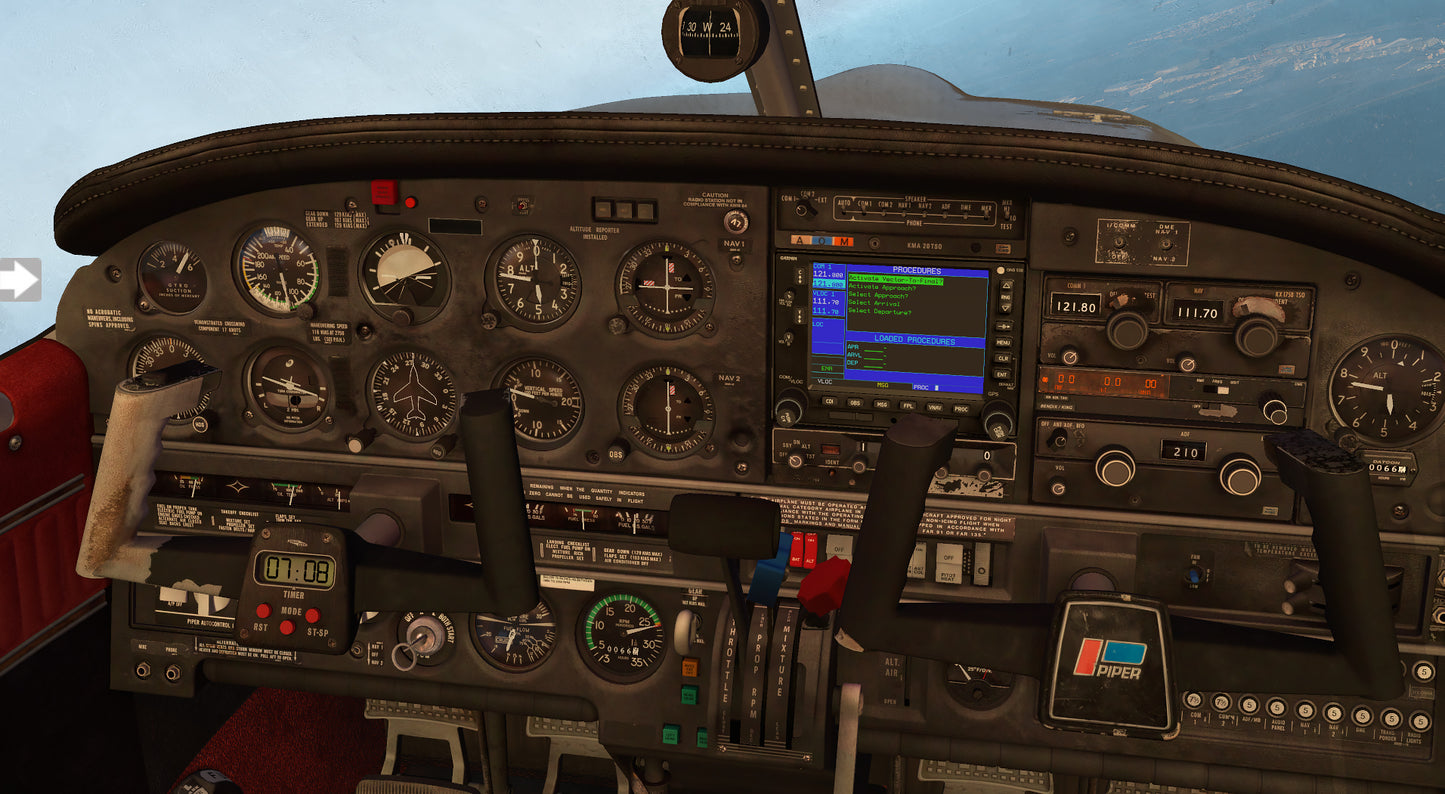

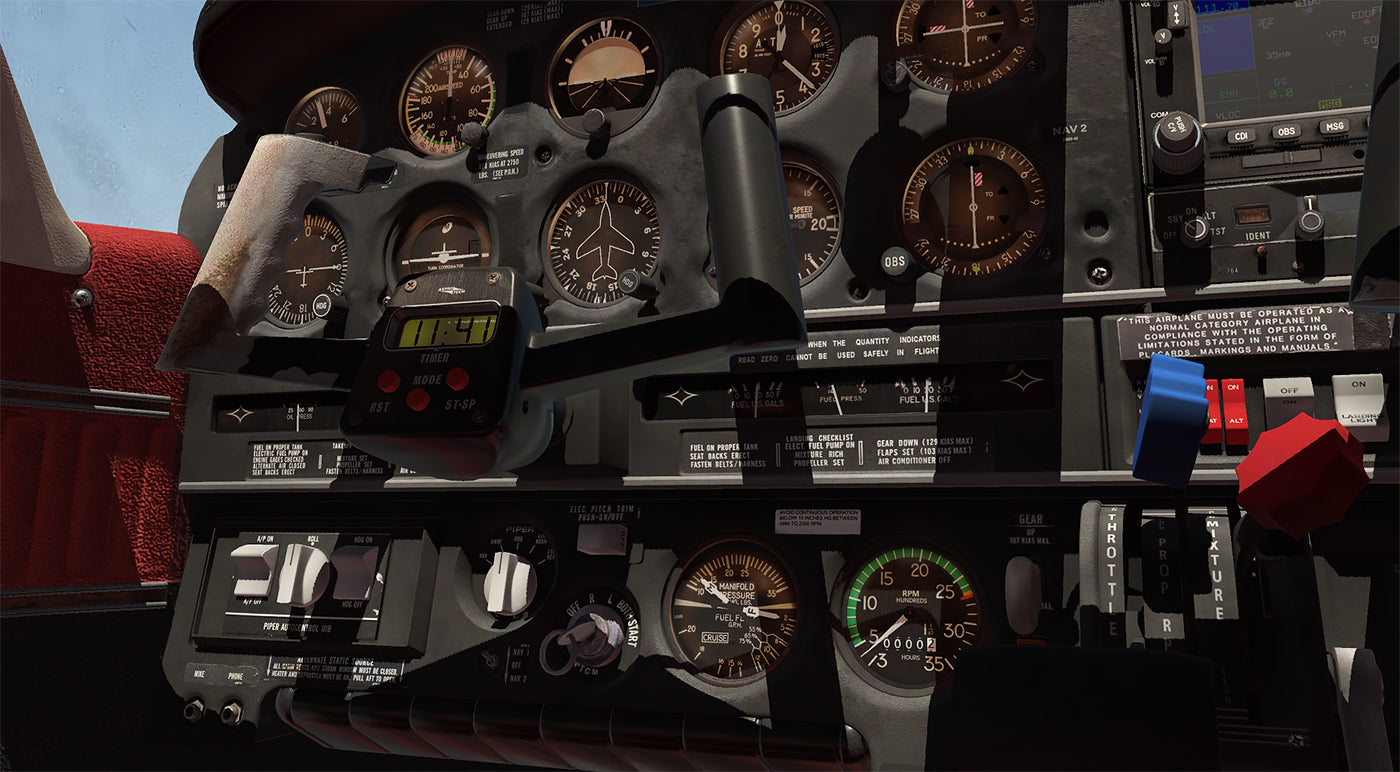

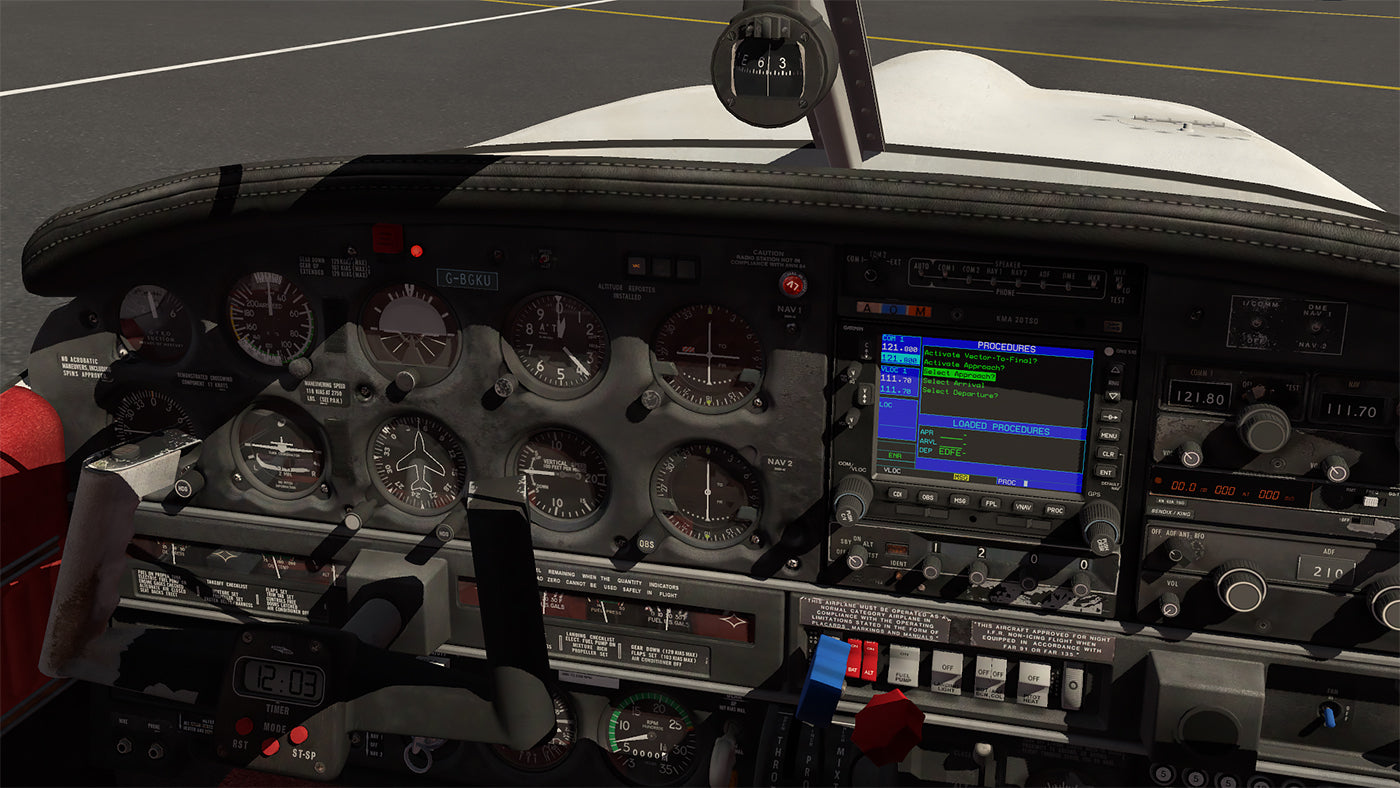

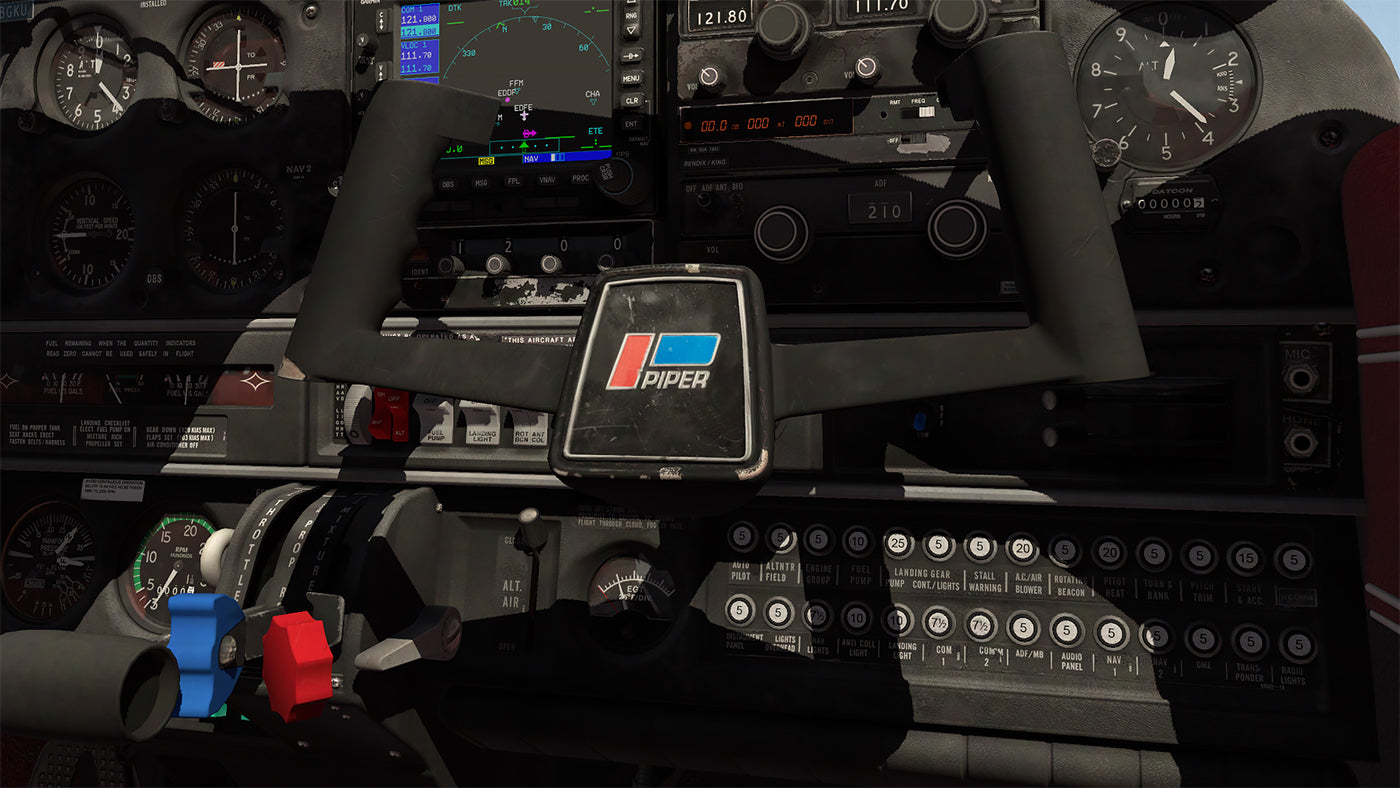

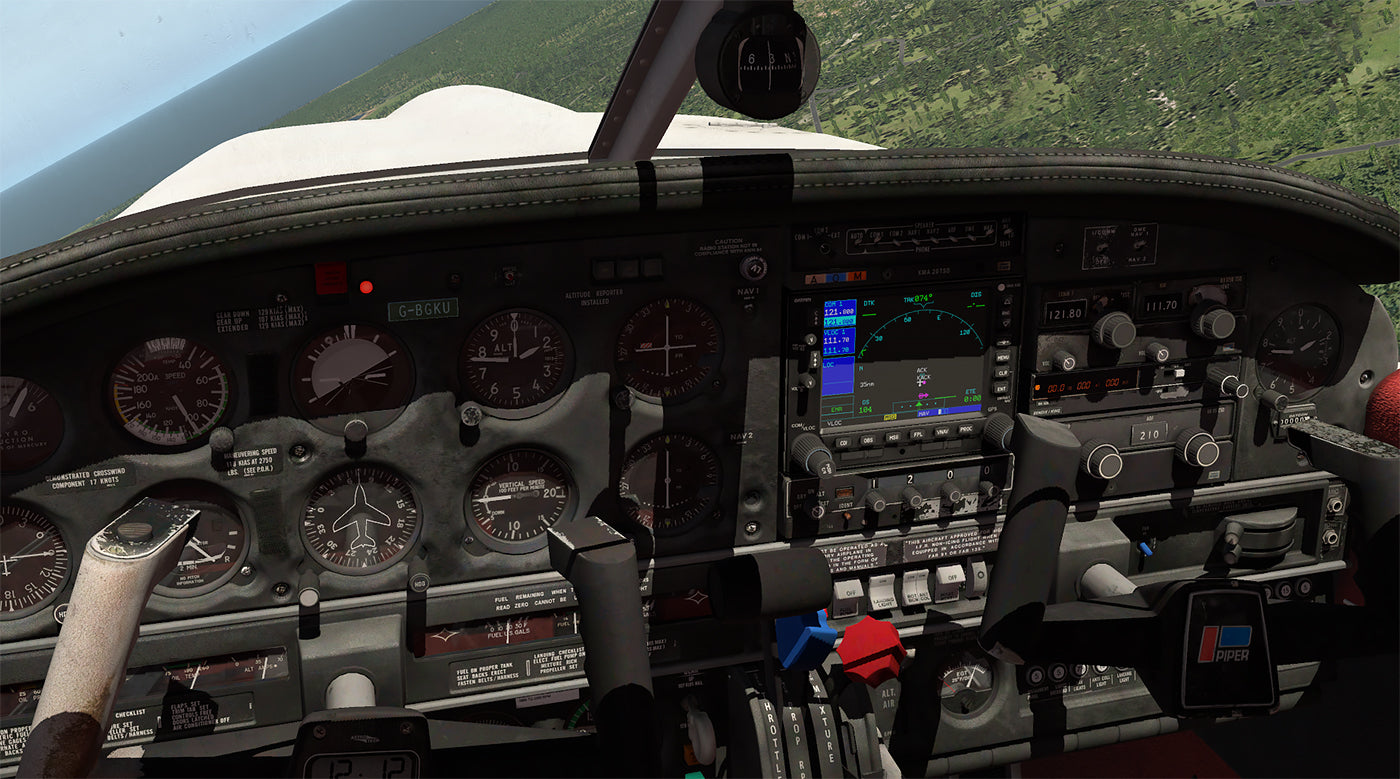

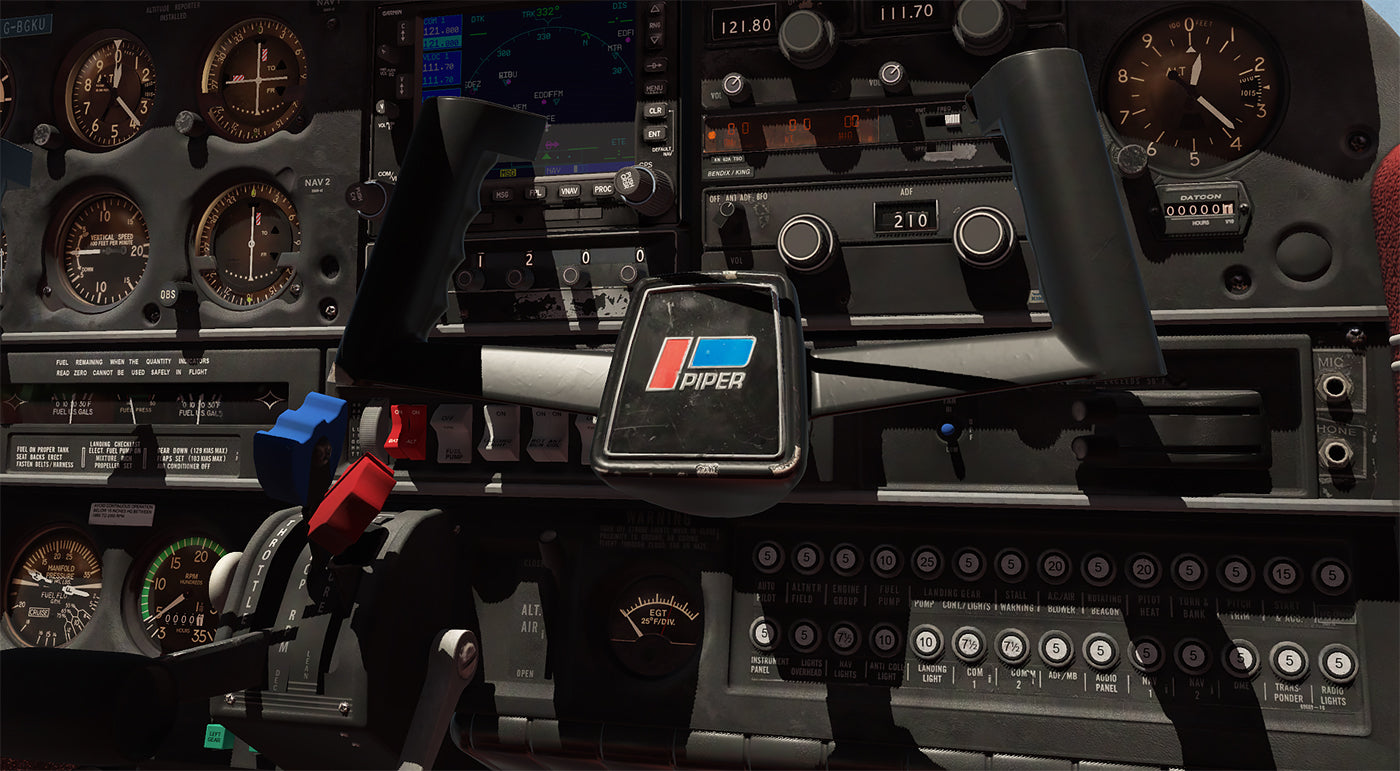

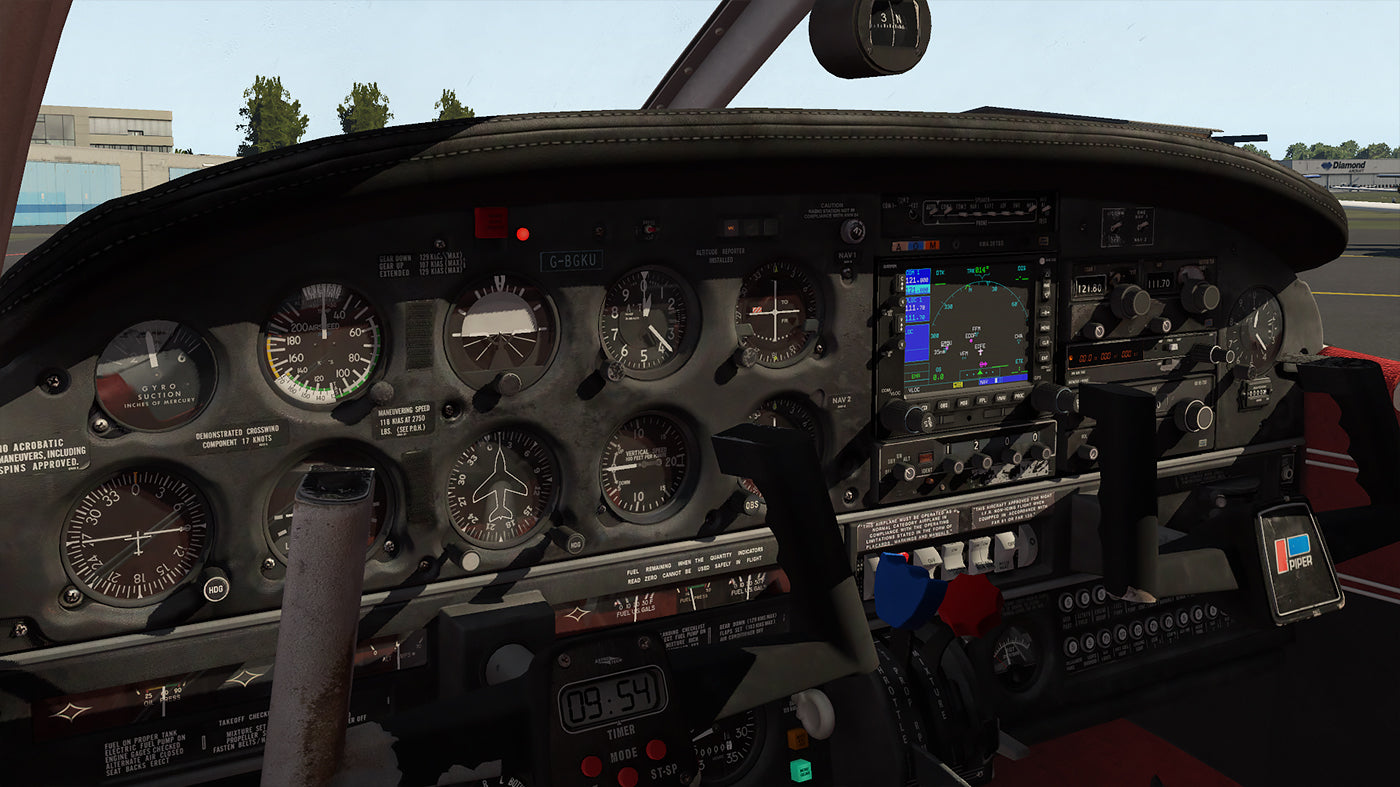

A truly 3D virtual cockpit right down to accurately modelled seat belts and screw heads - every instrument is constructed fully in 3D with smooth animations

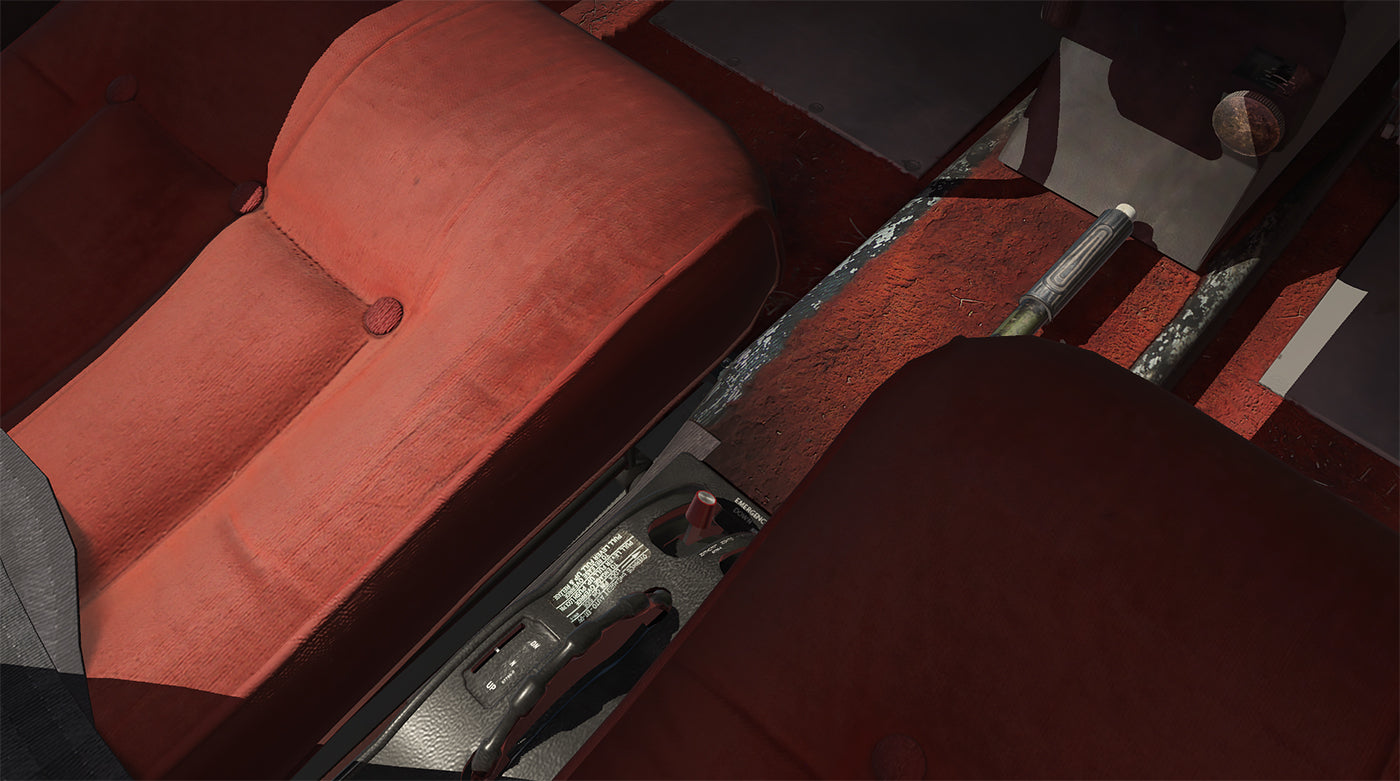

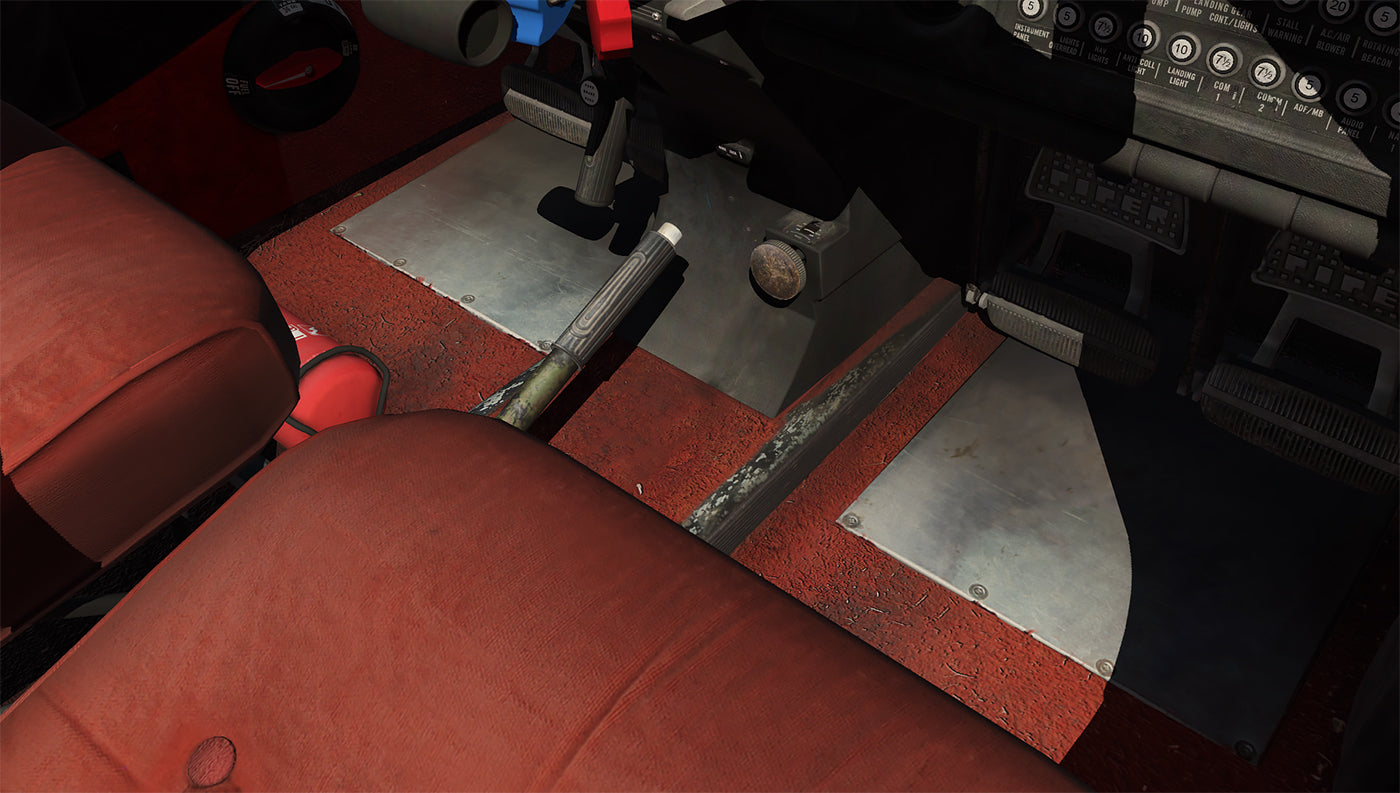

Cockpit textures feature wear and tear based on reference photos taken in the real aircraft to produce an authentic environment
Heavy and reduced levels of wear and tear in the virtual cockpit (changes according to selected livery)
Interactive engine start checklist that responds to user inputs and sim variables
Interactive checklists for every stage of flight
Aircraft configuration system that will allow you to choose between 'cold & dark' or 'ready for take-off' (if aircraft is stationary on the ground)

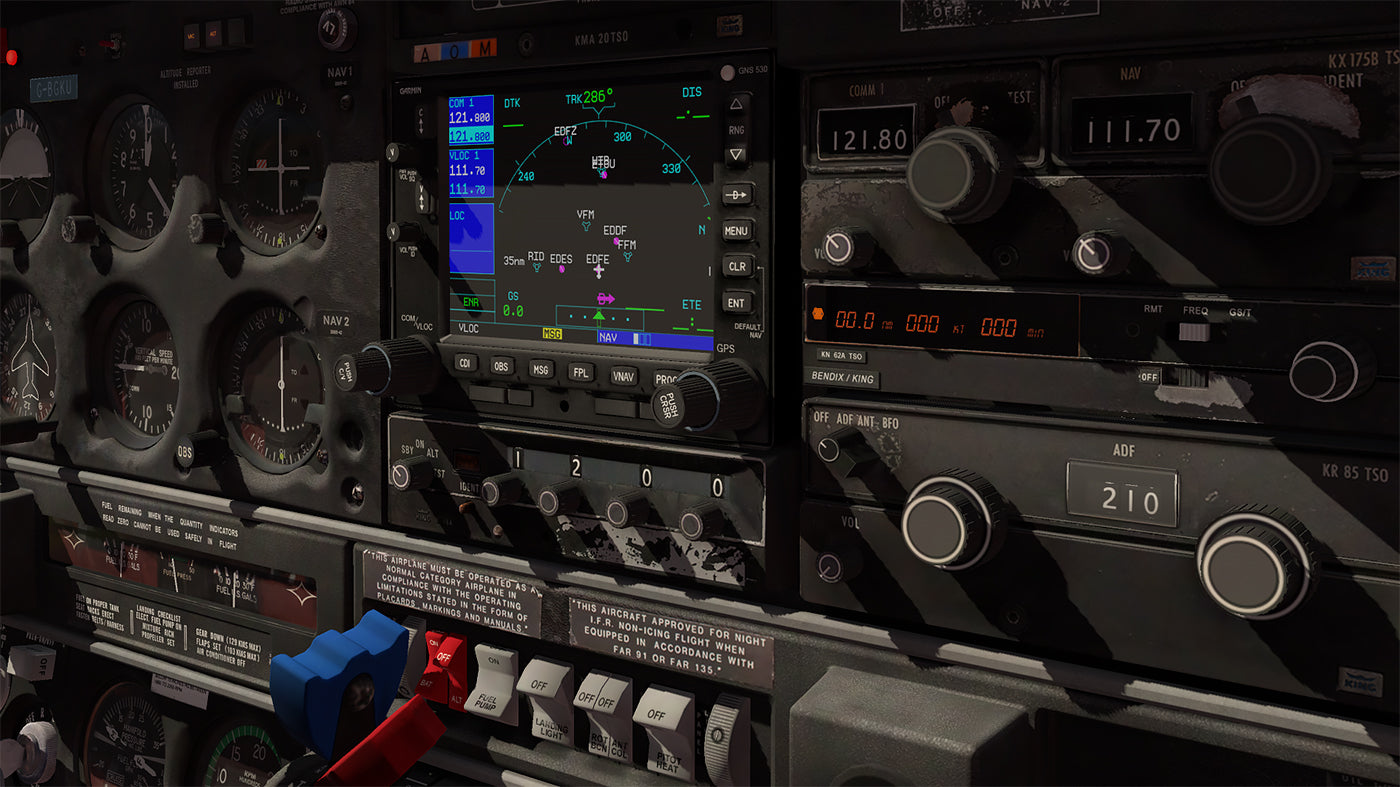

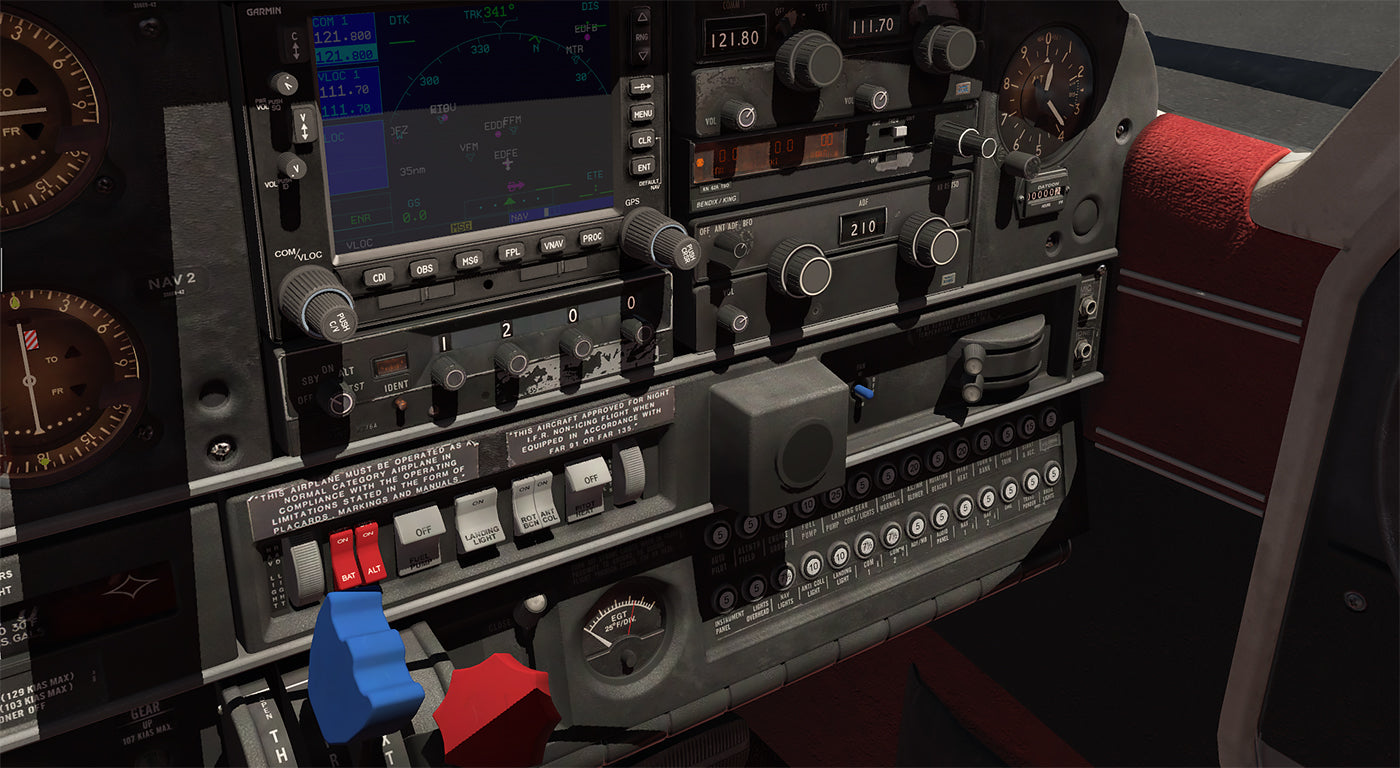

Fully functional and comprehensive IFR capable avionics fit including: - KMA 20 audio selector unit - Fully featured X-Plane-native GNS530 (supports procedures out of the box, and supports Navigraph and Aerosoft custom nav databases) - KX 175B COM 2 / NAV 2 radio - KN 62 DME unit which can display information from NAV 1 or NAV 2 - Piper Autocontrol IIIB autopilot unit with navigation, heading and roll hold (hidden autopilot altitude hold system included for convenience) - KT 76A transponder unit - KR 85 ADF unit - Support for RealityXP GTN750 planned (sold separately, Windows only)
Interactive logbook panel for logging your flight details (X-Plane native)
Flight computer panel with useful information such as fuel burn, endurance, speed and wind speed/direction
Yoke-mounted flight timer/clock
Independently operated left and right (standby) altimeter
GoodWay compatible
Ability to change barometric units from InHG to MB in altimeter adjustment
Option to activate flashlight from within pop-up window, to aid in those pitch-black cold and dark starts at night
Pop-up autopilot window
Option to remove window and instrument reflection effects
Animated toe brakes
Functional throttle quadrant tensioning system
Radio knob animations routed through plugin logic, for optimum movement fidelity and sound synchronisation
Aircraft systems
Custom-coded fuel system, including the option of automatic fuel tank switching for use on those long distance cross-country flights (this option is remembered for future flights)
Custom-coded electrical system with functional circuit breakers. Circuit breaker logic is linked to X-Plane's internal failure logic, so if the plane is set to fail a certain electrical component after a certain number of hours, the circuit breaker for that element will pop out.
Realistic landing gear system with intricate retraction animation, slow/fast tyre rotation animation (blurry when rotating fast), precise shock absorber animation with multiple linkages animated accurately, and wheel chocks and tie-downs
Functioning alternate air and static source controls
Fully implemented back-up landing gear system

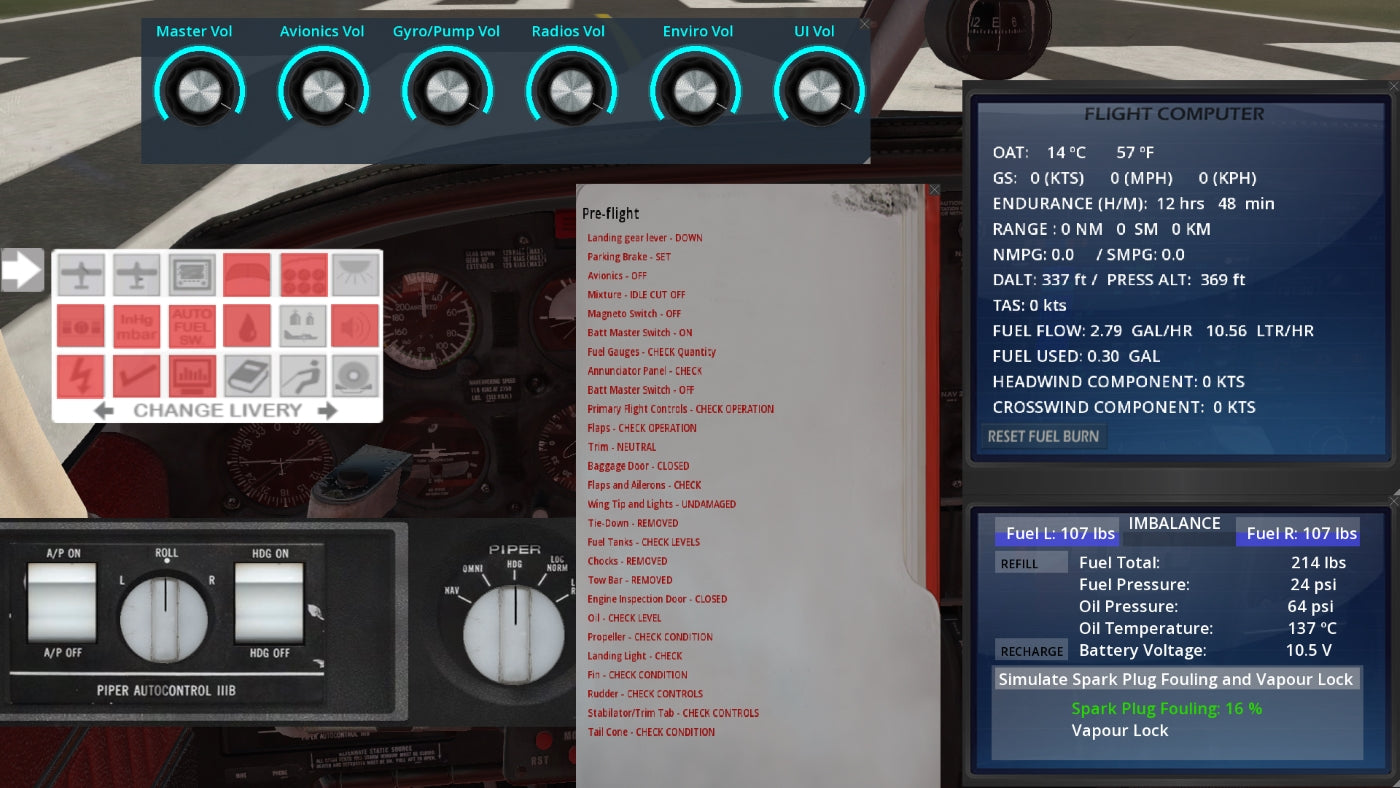

Dedicated interactive engine pop-up window displaying values such as fuel tank weights and imbalance, fuel pressure, oil pressure, oil temperature, battery charge (with quick charge option), and information about spark plug fouling and vapour lock condition
Simulated vapour lock condition, with warning pop-up and suggested actions
Simulated spark plug fouling condition, with indication of percentage of fouling

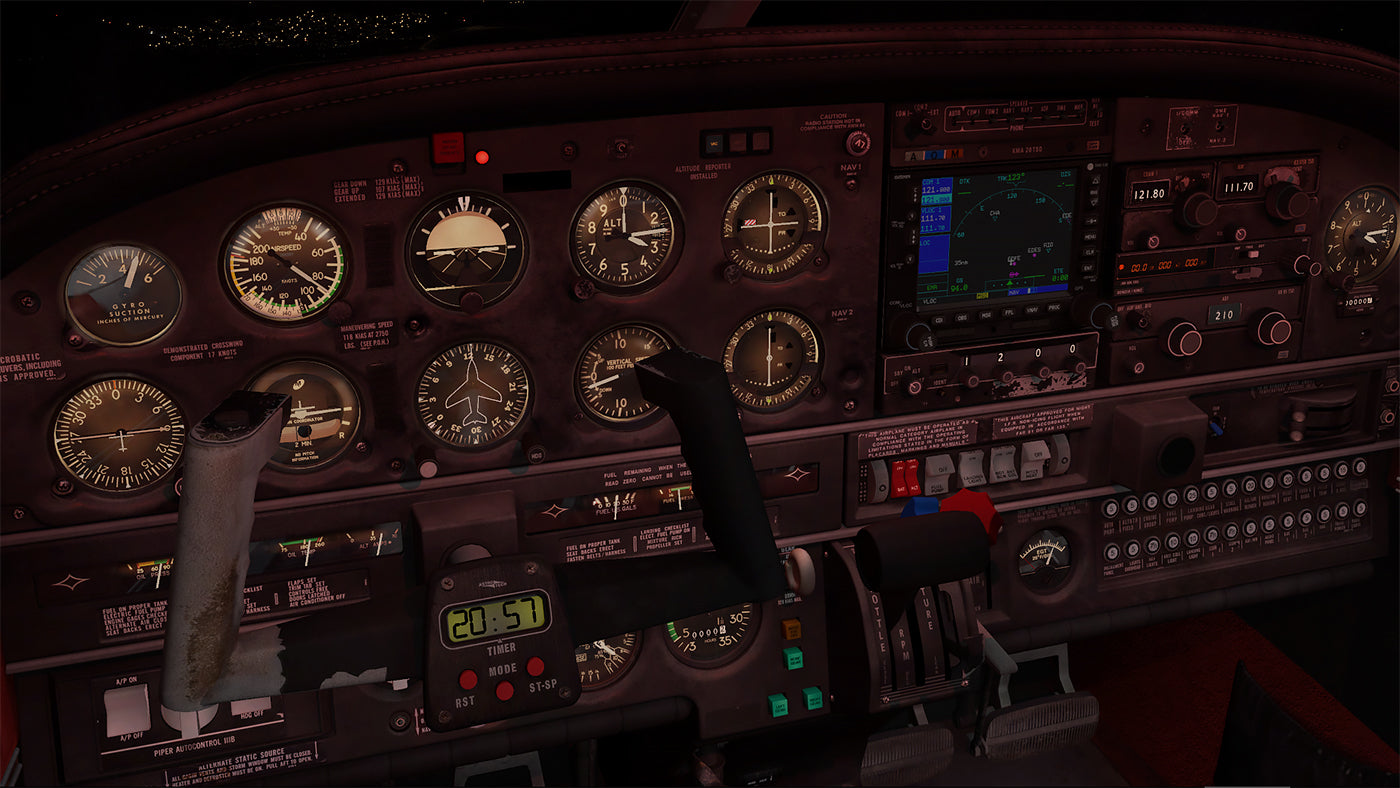

Lighting system includes separate lighting control for gauges (via rheostat) and realistic implementation of navigation light / radio light rheostat
Functional electric trim control on yoke (requires electric trim button to be pushed)
Functional ELT which is automatically triggered above 4.6 G
Simulated fan and vent system with realistic blower sounds (linked to circuit breaker logic and electrical system for realism)
Custom external light logic with custom strobe light pattern and custom light halos for added realism
Liveries
The aircraft is supplied in the following 11 paint schemes which can be swapped on the fly using a pop-up window:

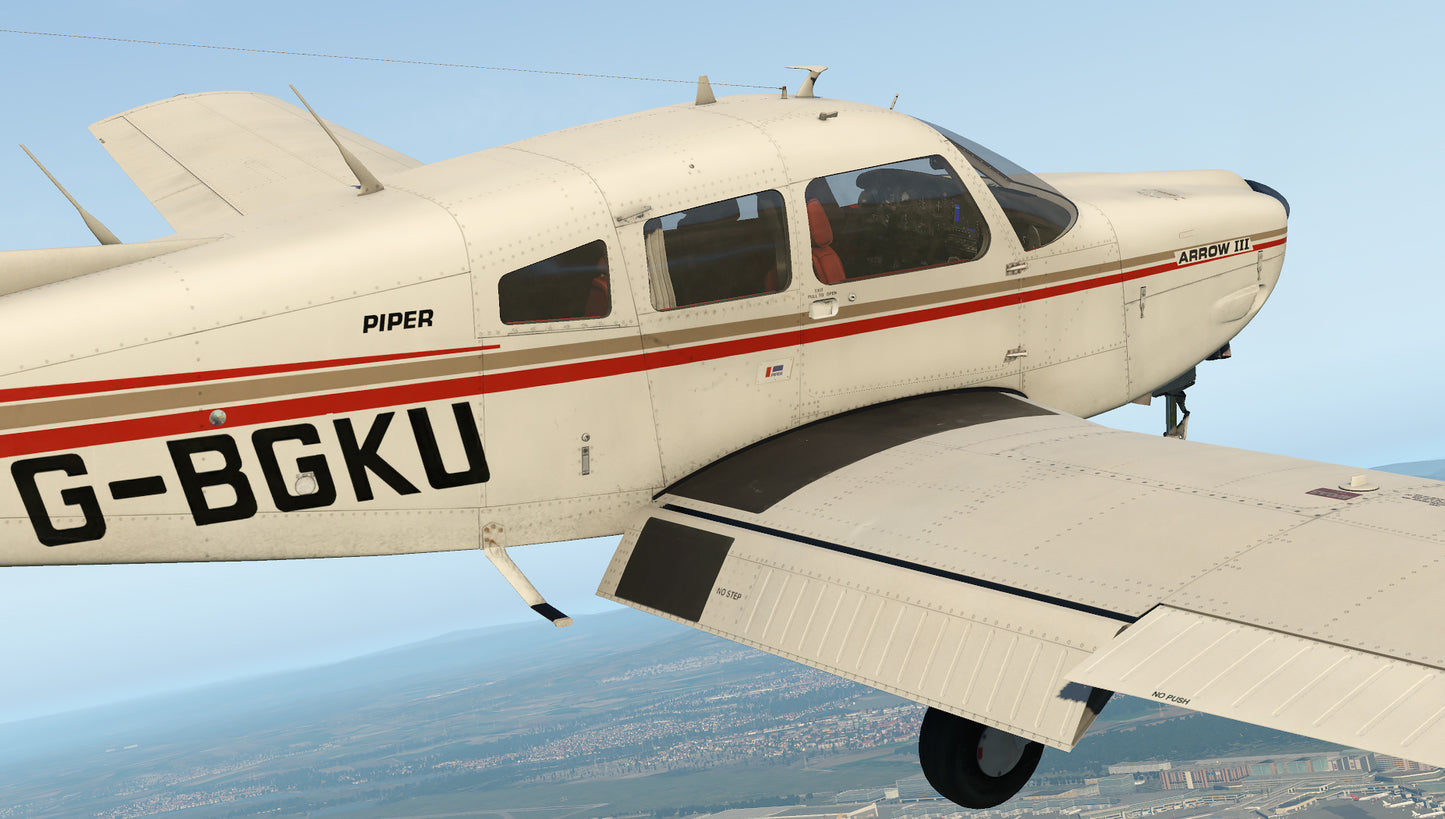

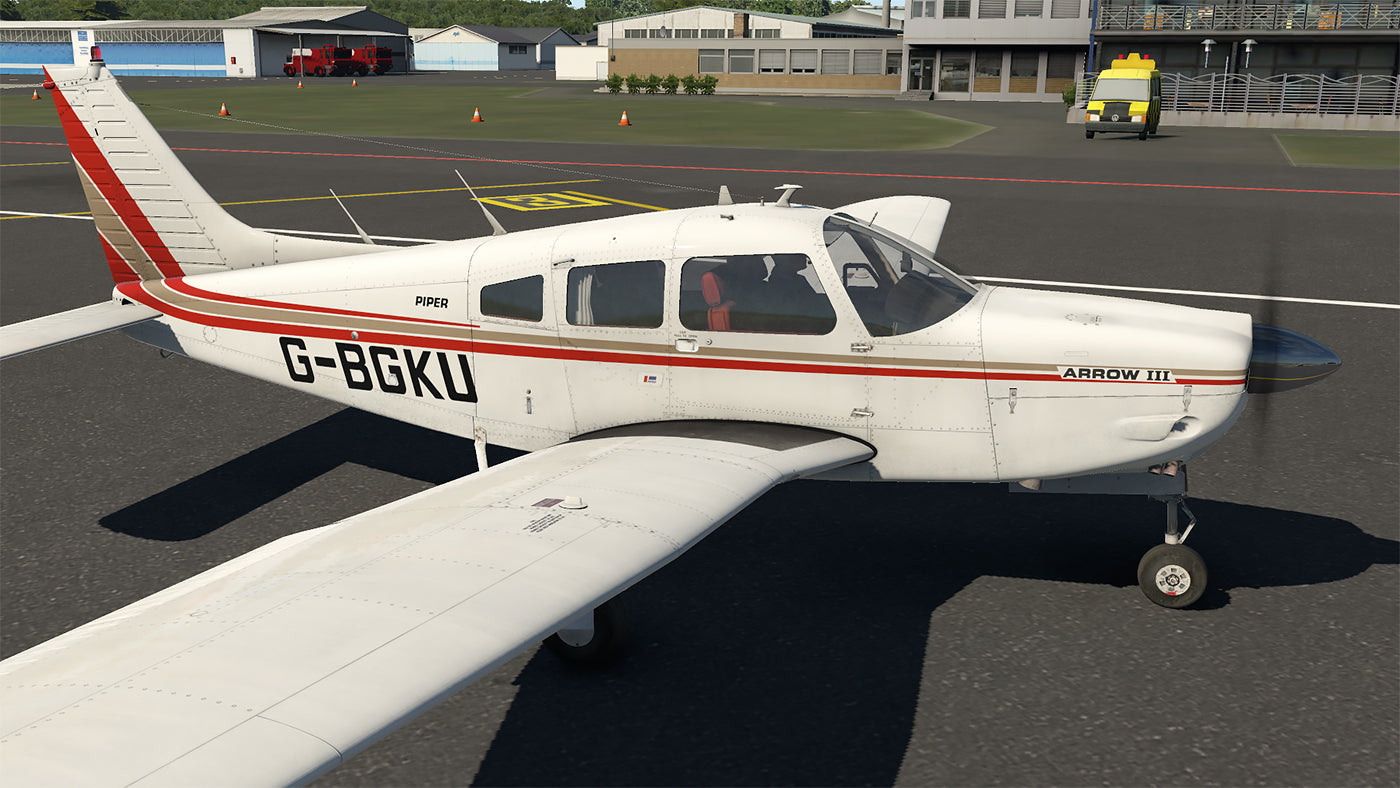

G-BGKU (UK)

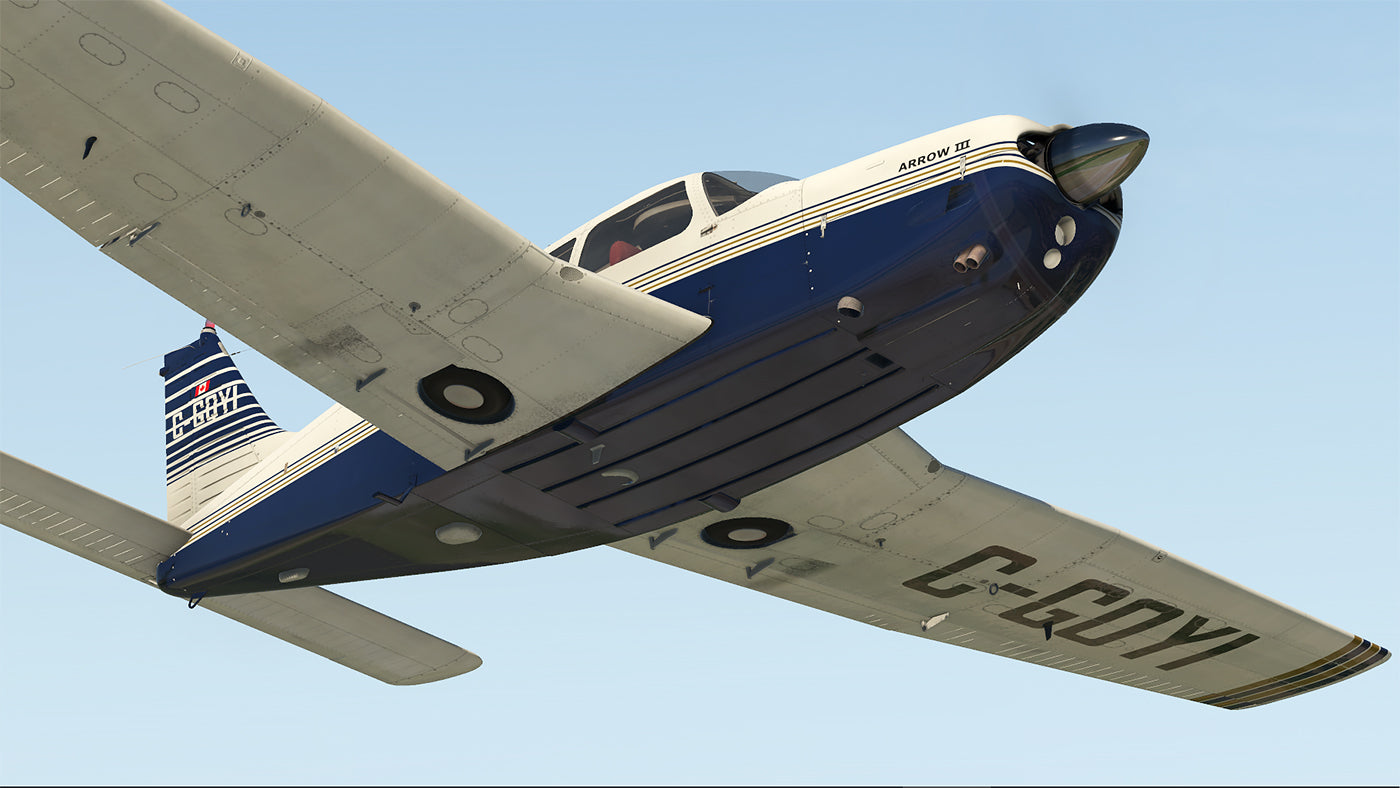

C-GQYI (Canada)

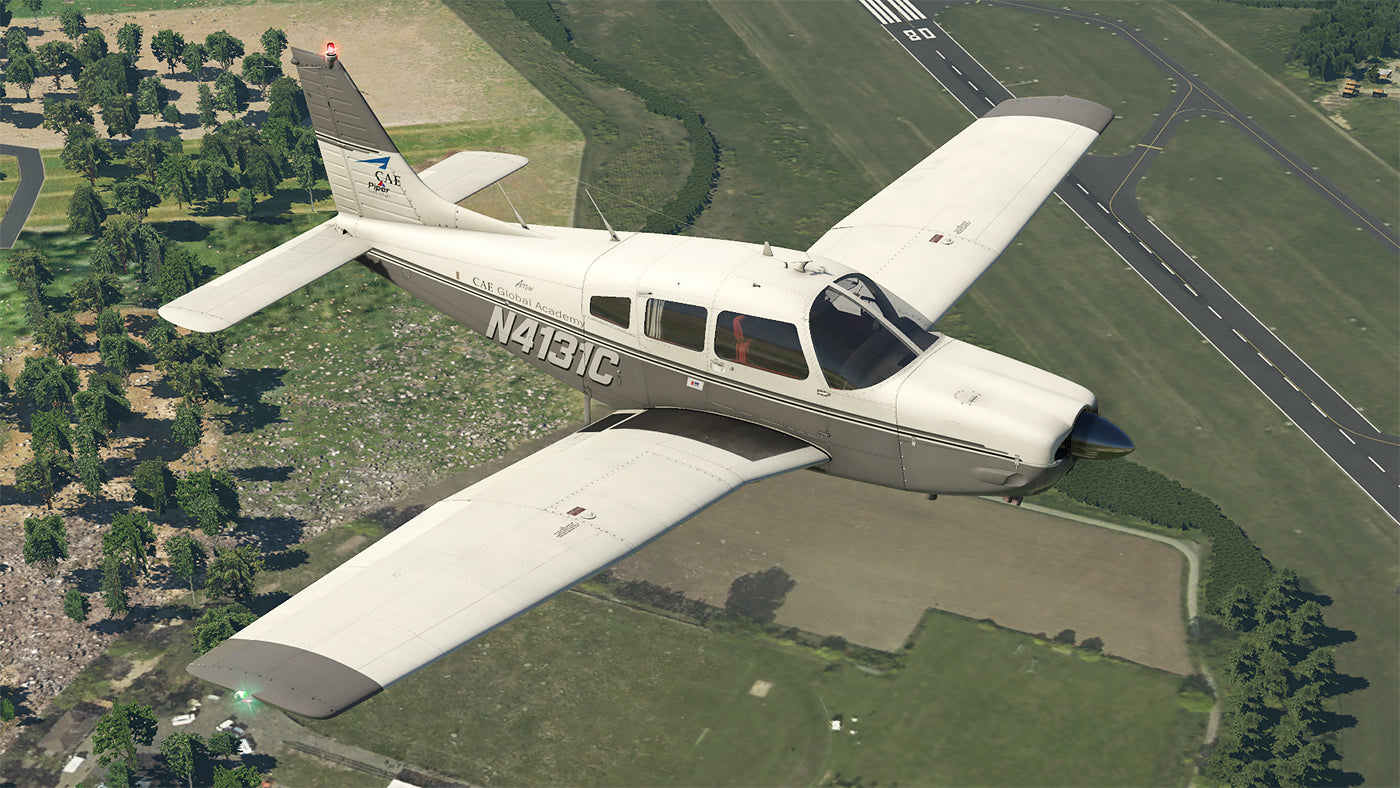

N4131C (USA)
G-BNSG (UK)

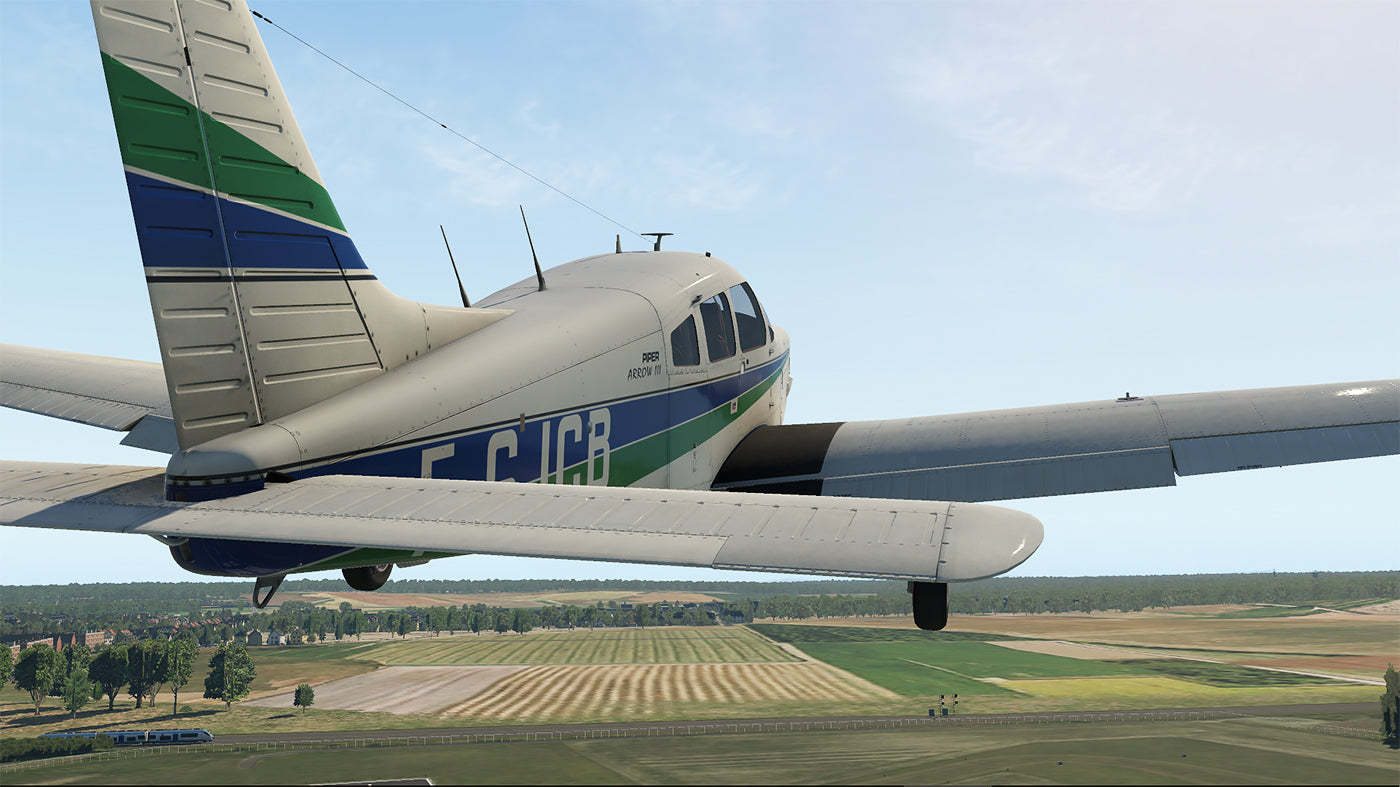

F-GJCB (France)

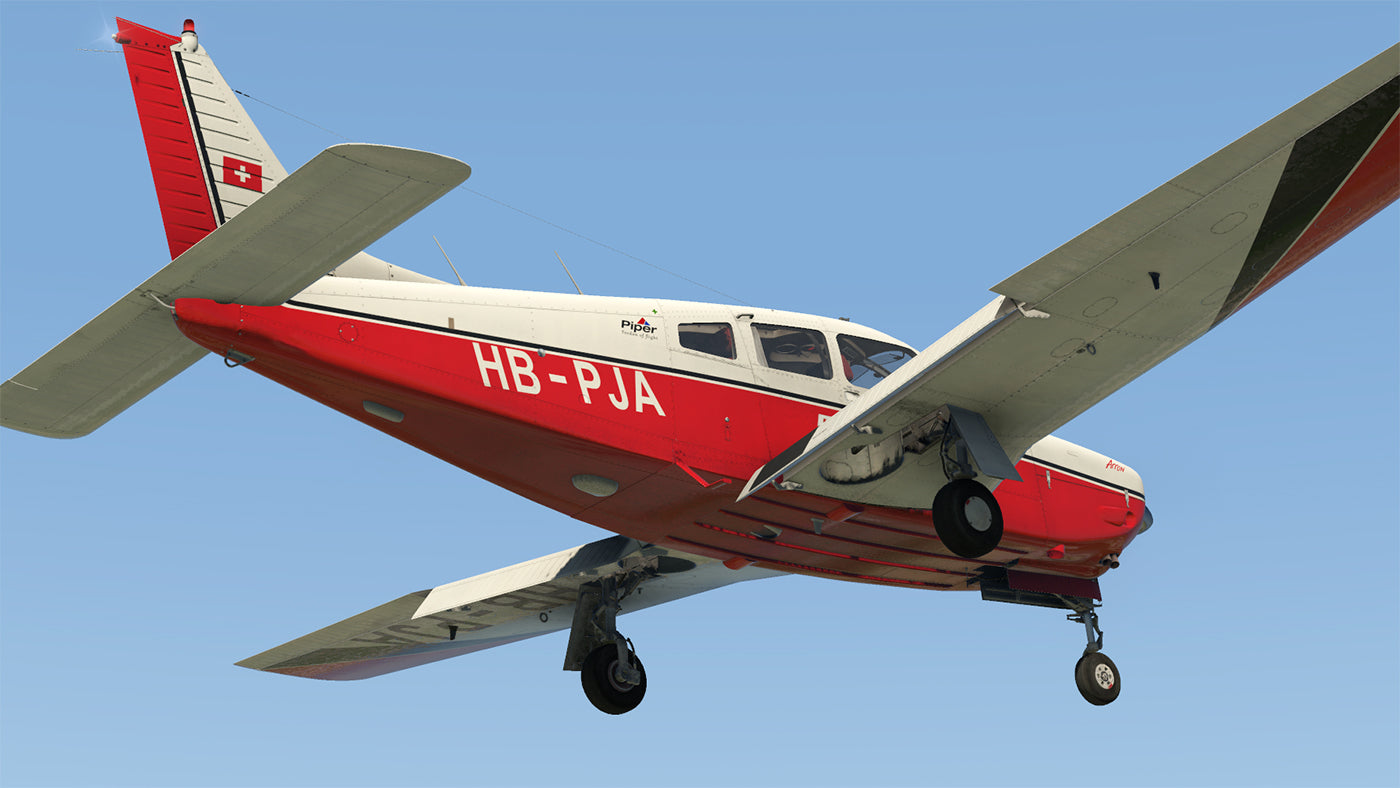

HB-PJA (Switzerland)
VH-SGE (Australia)

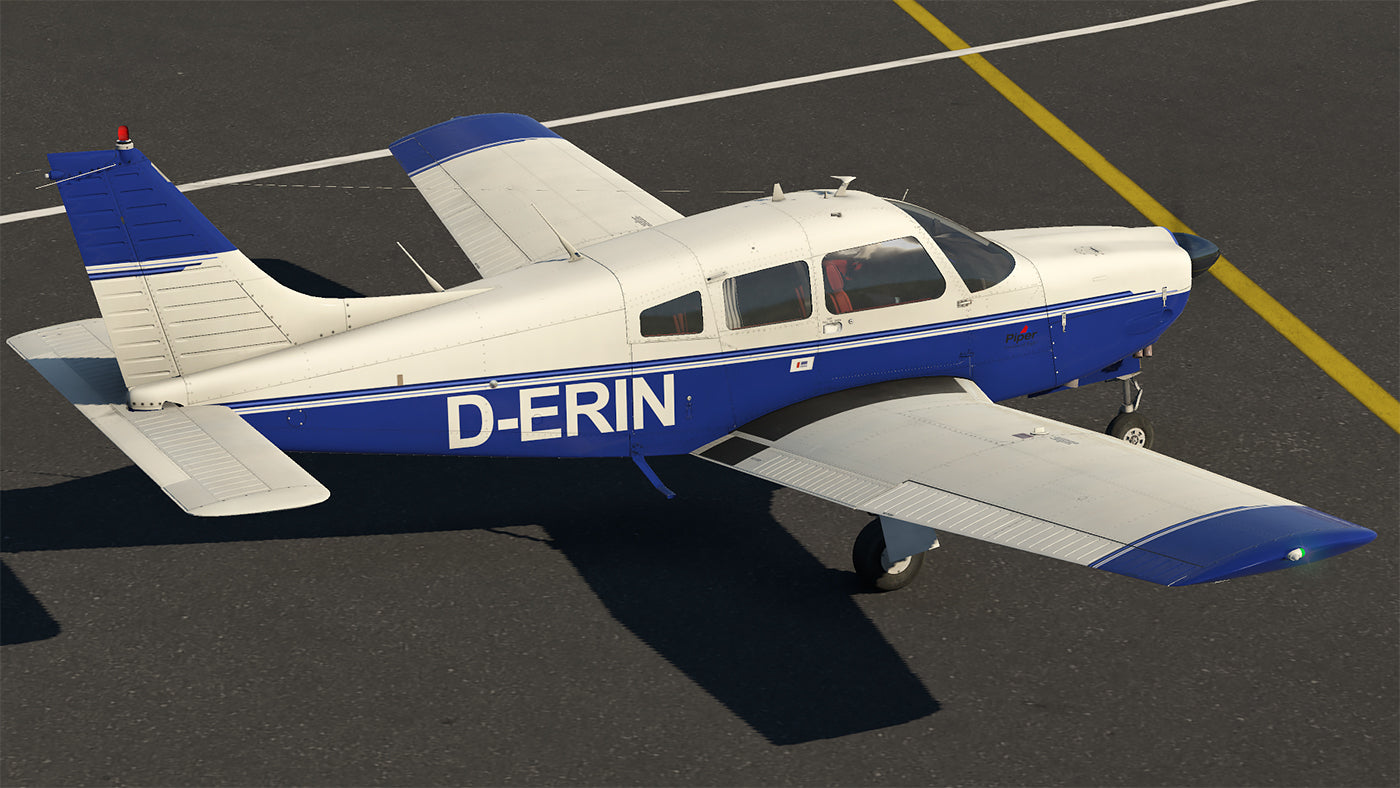

D-ERIN (Germany)

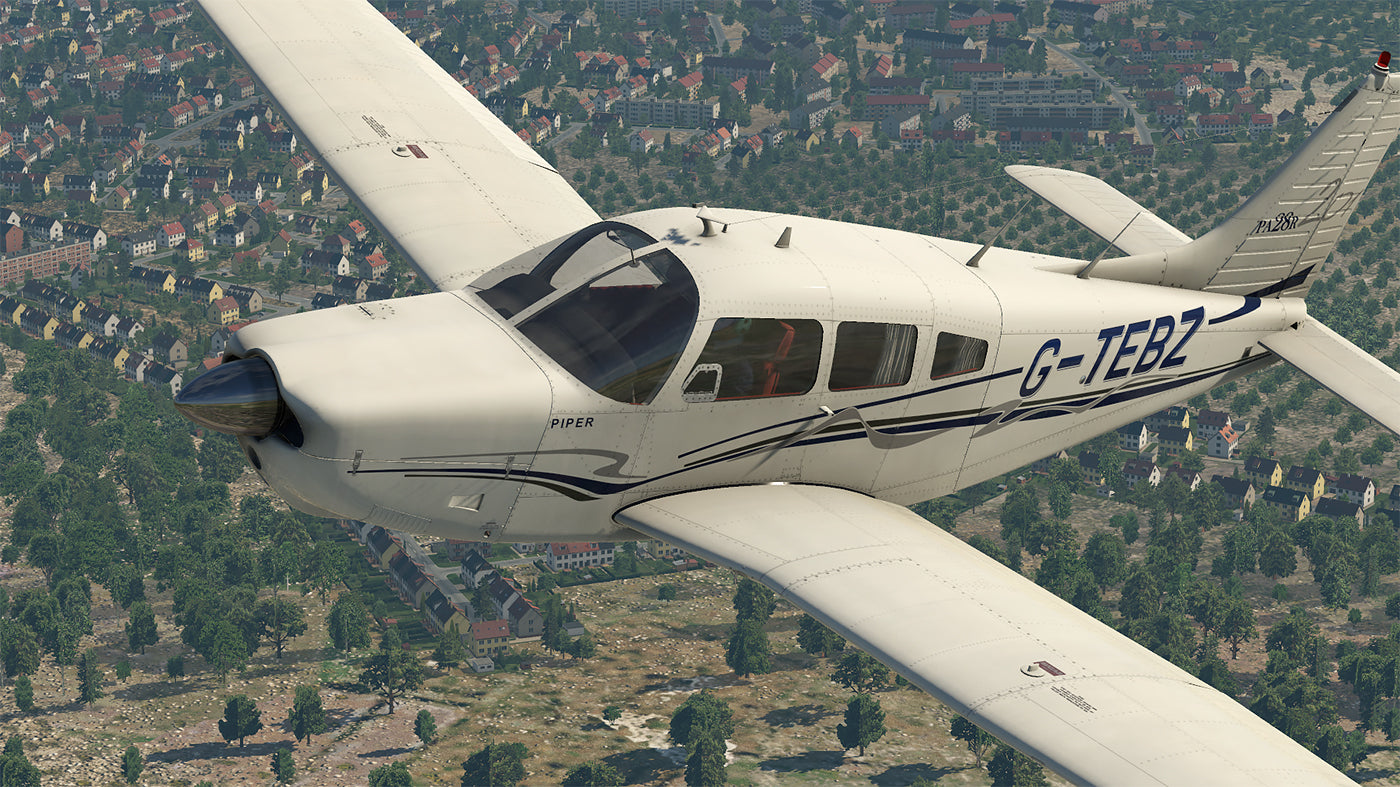

G-TEBZ (UK)

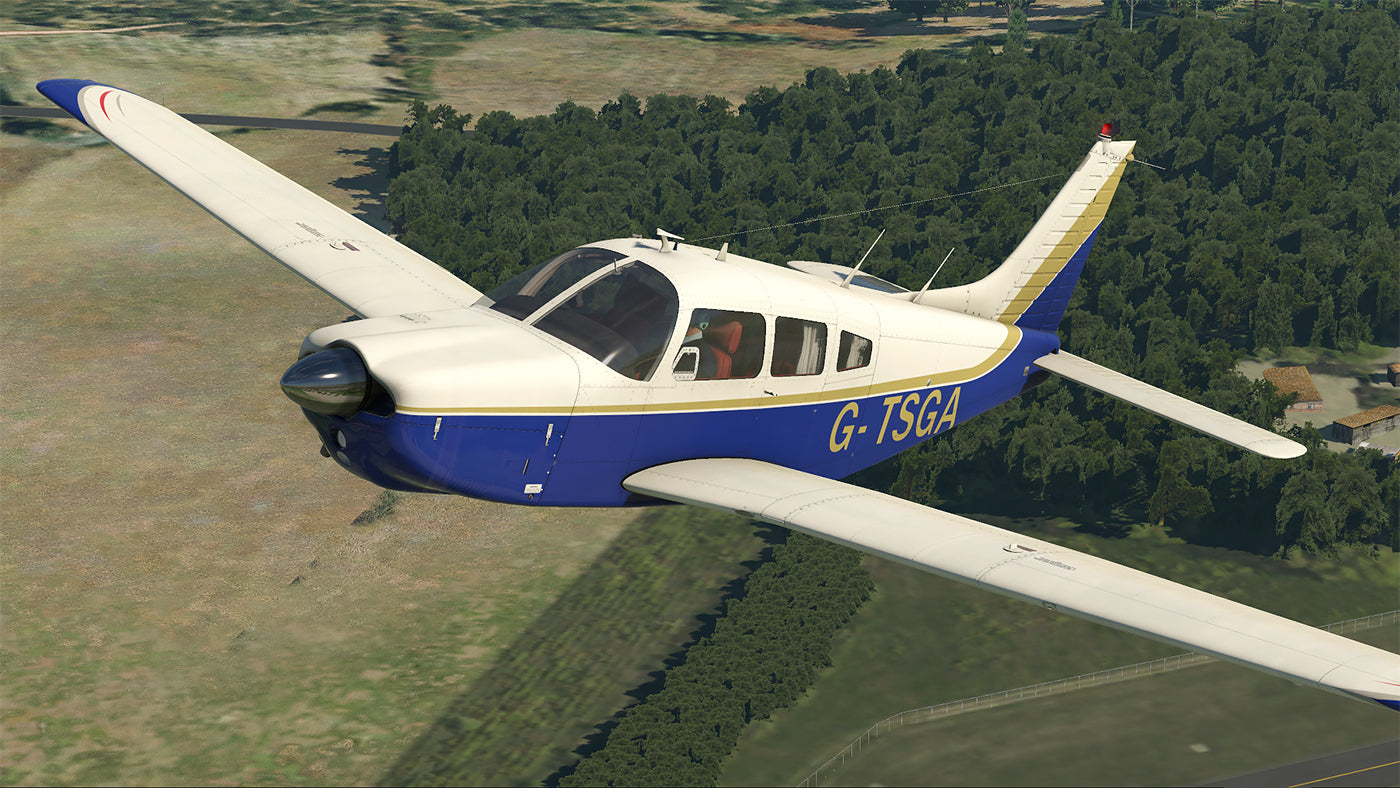

G-TSGA (UK)

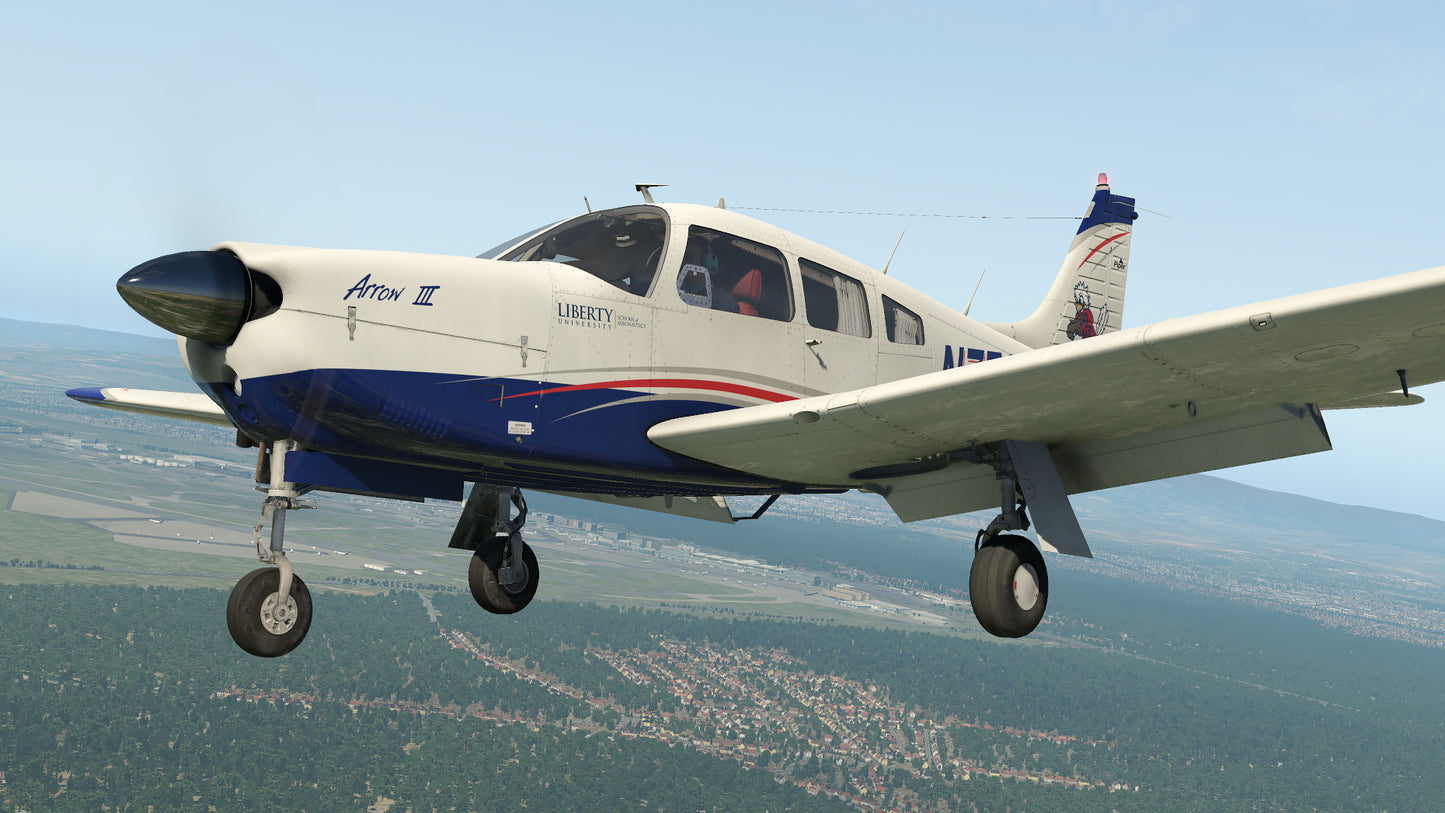

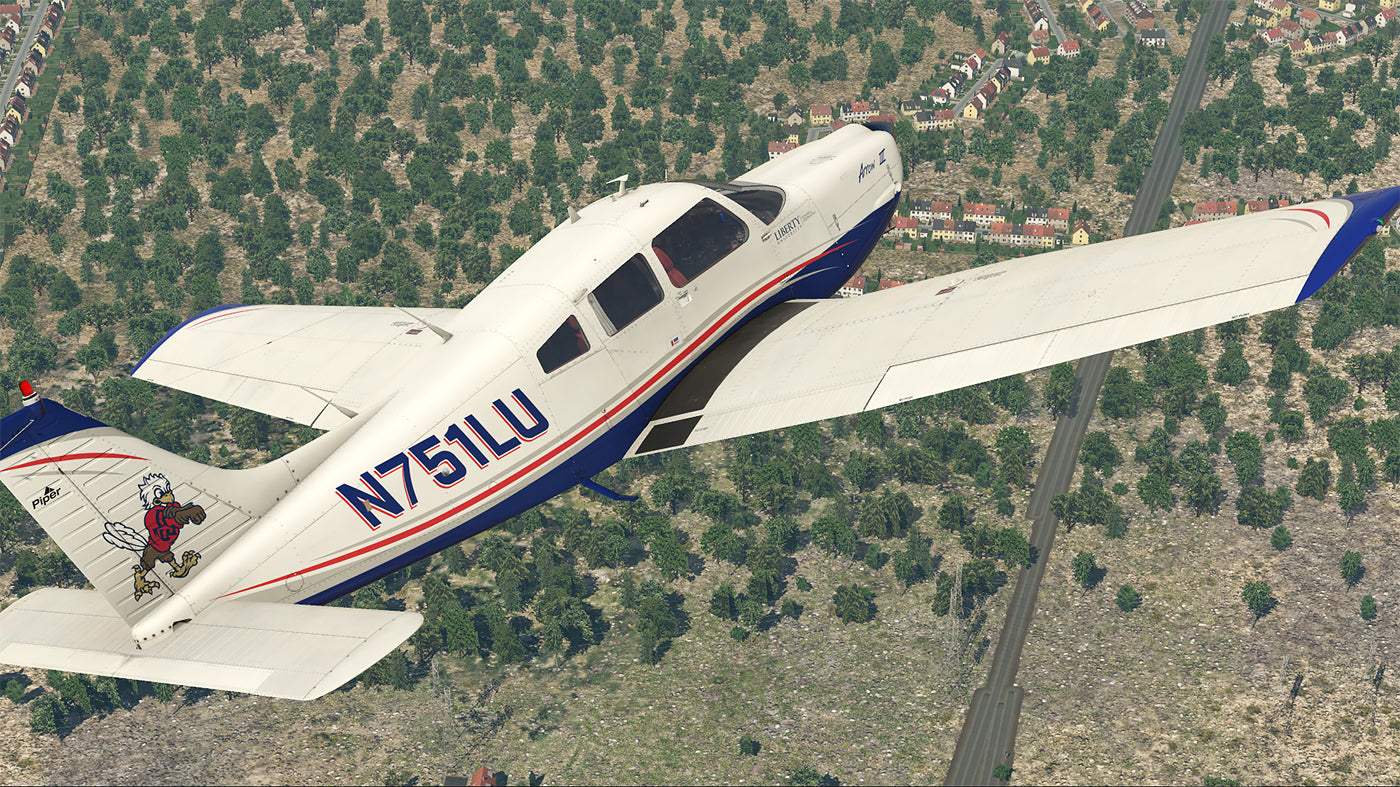

N751LU (USA)
Other
Realistic and accurate flight dynamics based on real-world performance and handling data, and input from Arrow pilots
Authentic sound set, generated using X-Plane's state-of-the-art FMOD sound system
Custom sounds for switches, doors, gear warnings and more, featuring accurate location placement of sounds in the stereo spectrum, 3D audio effects, atmospheric effects, adaptive Doppler, exterior sounds spill in when window or door(s) are opened, different sound characteristics depending on viewing angle etc.
Comprehensive manual with panel guide and performance data, adapted to X-Plane 11 usage
PSD Paint Kit included so you can create your own paint schemes
Dedicated pop-up window for sound mixing, allowing for individual adjustment of the volume of exterior sounds, in-cockpit sounds and various effects
Option to launch X-Plane's weight and balance manager window from the custom pop-up panel
SYSTEM REQUIREMENTS
X-Plane 11
CPU: Intel Core i5 6600K at 3.5GHz or faster
8GB RAM or more
DirectX 12-capable graphics card from nVidia, AMD or Intel with at least 4GB VRAM (GeForce GTX 1070 or better or similar from AMD)
Windows 10 / 7 / Vista / XP, MAC OS 10.10 (or higher) or Linux
